AR Buffer Design and Selection Guide
TL;DR: Article Summary
The AR buffer system plays a critical role in recoil management, timing, and reliability. Choosing the right buffer involves matching weight and length to your frame class (AR-15, PCC, AR-10), barrel length, gas system, and whether you’re running suppressed. Heavier buffers slow bolt velocity and reduce wear in overgassed or suppressed setups, while lighter buffers improve cycling speed in competition rifles. For blowback PCCs, solid heavy buffers are a safety requirement. Always tune buffer weight with spring strength and gas flow in mind for optimal performance.
Introduction
The buffer system is one of the most overlooked but essential components in AR-15 and AR-10 rifles. Tucked inside the receiver extension, this combination of simple components plays a vital role in controlling the cycling rate, managing recoil, and ensuring reliable chambering and extraction. While many shooters obsess over barrels, triggers, or optics, buffer system configuration is often treated as an afterthought — leading to frustrating and avoidable malfunctions, premature wear, or inconsistent recoil impulse.
This article explores the full design and selection process for AR buffers. Whether you’re running a suppressed SBR, building a full-length precision rig, or tuning a .300 Blackout or .308 system, understanding buffer parameters and how this component interacts with the buffer spring, the BCG, and the gas system is critical. We’ll break down the differences between carbine, rifle, and intermediate buffer setups, compare buffer compositions like steel vs. tungsten, and guide you toward optimized choices based on your application and gas system.
By the end, you’ll have a complete understanding of buffer mechanics — and the confidence to select or tune yours for smoother, more reliable operation.
What Is the Buffer and Why Does It Matter?
The buffer system in an AR-pattern rifle consists of two key components: the buffer itself and the action (or recoil) spring. Within the receiver extension (buffer tube), they regulate the cycling of the bolt carrier group (BCG) by absorbing, storing, and releasing the kinetic energy harnessed during the operating cycle. This deceptively simple system has a profound impact on the rifle’s reliability, felt recoil, and overall function.
Buffer System Function
When a round is fired, gas pressure drives the bolt carrier rearward. The buffer and spring resist this movement, slowing and eventually reversing the BCG’s direction. The spring compresses against the closed end of the buffer tube, then expands to drive the buffer and BCG forward, which chambers the next round.
A properly tuned buffer system ensures:
- Reliable extraction and ejection
- Reliable bolt lock-back after firing the last round
- Reduced felt recoil and muzzle movement
- Reliable chambering and locking
- No bolt bounce
- No short-stroking
- No magazine overrun
Why It Matters
An improperly configured or imbalanced system — such as using a lightweight carbine buffer in a suppressed setup or pairing a heavy buffer with an undergassed system — can result in:
- Harsh recoil impulse
- Damaged buffer
- Failure to feed or lock back
- Increased wear on the bolt, cam pin, and receiver
- Overcycling or short stroking
AR Buffer Design Considerations
Choosing the right buffer involves more than selecting the heaviest option or following “rule of thumb” recommendations from discussion boards or snarky guidance from meme-forward websites. Proper buffer selection starts with understanding the forces imparted by the gas system — fundamentally a function of AR class, gas system length, barrel length, gas port diameter, and one of the most important yet underappreciated variables in a DI system: gas efficiency.
Once you understand the driving forces, you understand what the buffer system needs to counteract. The buffer remains one of the most effective and user-controllable tools for managing recoil and timing. To tune your AR correctly, you must consider buffer weight, length, spring type, tube dimensions, construction, and even material and finish. Each of these factors influences recoil characteristics, cycling reliability, and compatibility with your gas system and upper-receiver configuration.
🔵 AR Class
Small Frame (AR-15: 5.56 NATO / .223 Remington / 300 BLK)
- Typical Buffer Weight: Carbine: 3.0–6.9 oz; A5: 3.8-7.2 oz; Rifle: 5.0-5.4 oz
- Length: Carbine: 3.25″; A5: 4.00″; Rifle: 5.90″
- Internal Design: Usually 3 reciprocating weights (5 for rifle; 4 for A5), each made of steel, tungsten, or aluminum
- Key Point: Buffer weight is tuned for recoil and gas system force — lighter for unsuppressed guns and longer gas systems; heavier for short barrels or suppressed setups.
Pistol Caliber (9mm, .45 ACP, etc.)
- Typical Buffer Weight: Carbine: 5–10 oz
- Length: Carbine: 3.25″; Extended: 4″
- Internal Design: Solid, non-reciprocating (no sliding weights)
- Key Point: Blowback operation relies entirely on buffer mass to delay and manage bolt movement. AR-15 carbine buffers are too light and unsafe for use here. Blowback designs benefit from a longer buffer to prevent excessive bolt overtravel in a carbine receiver extension.
Large Frame (AR-10, .308 Winchester, 6.5 Creedmoor)
- Typical Buffer Weight: Carbine: 3.8–5.6 oz; Rifle: 5.0-9.3 oz
- Length: Carbine: 2.50″; A5: 3.25″ (use AR-15 Carbine); Rifle: 5.20″
- Internal Design: Similar to AR-15 (reciprocating weights), but shorter
- Key Point: Buffers for large frame platforms must be shorter — compared to the AR-15 — to accommodate the longer BCG.
🔵 Buffer Tube Length
Receiver extensions affect internal stroke length:
- Carbine Tube (7.0″): Compact design for maneuverability
- A5 Tube (7.75″): Intermediate length blends benefits of carbine and rifle length buffer tubes
- Rifle Tube (9.6″): Longer travel smooths recoil impulse
Mismatching buffer length and tube can cause short stroking or component damage (e.g., collision of gas key with buffer tube boss).
We cover the buffer tube in detail in our Buffer Tube design article.
🔵 Buffer Length
Buffer length is purely about fit and corresponds to the frame size/BCG length and buffer tube length. The table below defines the appropriate buffer length for each combination.
| Correct Buffer Length by Frame Size and Buffer Tube Length | |||
|---|---|---|---|
| Buffer Tube | Small Frame | Large Frame | Pistol Caliber |
| Buffer TubeCarbine | Small Frame3.25″ | Large Frame2.5″ | Pistol Caliber
3.25″ Extended1: 4.00″ |
| Buffer TubeA5 | Small Frame4.00″ | Large Frame3.25″ | Pistol CaliberNot Tested2 |
| Buffer TubeRifle | Small Frame5.90″ | Large Frame5.20″ | Pistol CaliberNot Applicable |
|
|||
1: Extended length prevents excessive bolt overtravel in a carbine tube.
2: Theoretically, the extended PCC buffer will function in the A5 buffer tube the same way the standard PCC buffer would function in the carbine buffer tube. To date, we have not tested the function. But in theory, an extended PCC buffer could work with an AR-10 rifle buffer spring and the right buffer weight.
Compatibility of buffer lengths between frame sizes is dependent on the BCG length, which defines the minimum stroke length for complete cycling. The table below illustrates the compatibility of buffers between small and large frame systems based on the buffer tube length.
| Buffer Length Compatibility by Frame Size and Buffer Tube Length | ||
|---|---|---|
| Buffer Tube | Small Frame | Large Frame |
| Buffer TubeCarbine | Small FrameAR-15 Carbine | Large FrameAR-10 Carbine |
| Buffer TubeA5 | Small FrameAR-15 A5 | Large FrameAR-15 Carbine1 |
| Buffer TubeRifle | Small FrameAR-15 Rifle | Large FrameAR-10 Rifle |
|
|
||
1: Length is compatible (A5 tube is +0.75″ over Carbine; AR-15 Carbine buffer is +0.75″ over AR-10 Carbine buffer). Buffer weight must be selected carefully to manage large frame recoil.
🔵 Buffer Body Materials and Finishes
The buffer body houses the internal weights and interfaces with the buffer spring and BCG. Its construction and finish affect durability, corrosion resistance, and in some cases, weight distribution.
| Buffer Body Material Comparison | ||
|---|---|---|
| Material | Properties | Use Case |
| Material6061 Aluminum | PropertiesLightweight, low cost, adequate strength | Use CaseEntry-level and casual use buffers |
| Material7075 Aluminum | PropertiesHigher strength, better fatigue resistance | Use CaseDuty builds |
| MaterialSteel | PropertiesVery strong, heavier weight, corrosion-prone without coating | Use CaseHeavy or PCC buffers, long service life |
|
|
||
| Buffer Body Finish Comparison | ||
|---|---|---|
| Finish Type | Benefits | Notes |
| Finish TypeClear Anodizing (Type II) | BenefitsBasic corrosion protection | NotesBright silver or gold finish, common on budget/mid-tier buffers |
| Finish TypeType III Hardcoat Anodize | BenefitsCorrosion resistance, wear protection | NotesGray (Class 1) or black (Class 2) finish, Mil-Spec |
| Finish TypeManganese Phosphate | BenefitsDurable, matte surface, corrosion-resistant | NotesDefault finish for steel buffer body |
| Finish TypeNitride | BenefitsImproved durability, improved lubricity, corrosion-resistant | NotesImproved finish for steel buffer body |
|
|
||
🔵 Internal Buffer Weights
The body of the buffer is designed to contain an internal mass. Most buffers contain reciprocating cylindrical weights. These weights can be made from steel, tungsten, or aluminum, and the combination affects total mass, recoil characteristics, and bolt timing.
| Internal Buffer Weight Comparison | ||
|---|---|---|
| Material | Approx. Mass per Insert | Relative Weight |
| MaterialAluminum | Approx. Mass per Insert~0.3 oz | Use CaseLightweight |
| MaterialSteel | Approx. Mass per Insert~0.6 oz | Use CaseStandard mass |
| MaterialTungsten | Approx. Mass per Insert~1.45 oz | Use CaseHeavy mass |
|
|
||
Pistol Caliber / Mini Buffers
Pistol-caliber and short AR pistol buffers are often solid steel or tungsten with no internal moving weights. These fixed-mass buffers are used in blowback systems (like 9mm) where reciprocating weights are unnecessary or unsafe. Some shortened buffers (e.g., for PDW systems) also omit reciprocating internal weights due to space constraints.

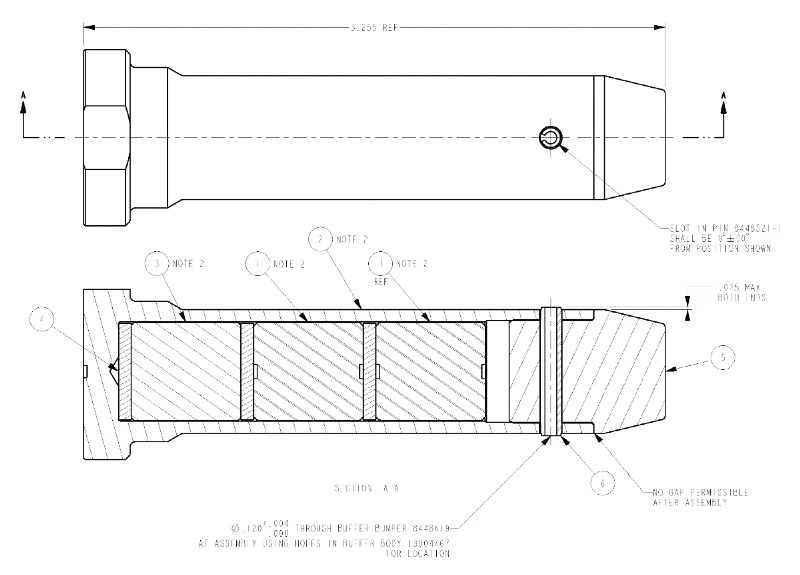

Carbine Buffers
Standard AR-15 carbine buffers typically house three internal weights. These may be all steel (Carbine weight buffer), or a mix of steel and tungsten (H1–H3). Some competition or configurable buffers may include aluminum weights for reduced mass. The number and type of weights directly affect bolt velocity, recoil impulse, and timing.
A5 Buffers
A5 buffers contain four internal weights, which allow the longer buffer body to maintain similar function with smoother cycling. Like carbine buffers, they can be tuned with combinations of steel, tungsten, or aluminum weights — though A5 buffers often start heavier by default. Their longer length requires an A5 receiver extension and rifle spring.
Rifle Buffers
Rifle buffers contain five internal weights and a rifle buffer spacer. The weights are generally steel, though they could theoretically be configured with tungsten or aluminum weights to fine tune the mass. Rifle buffers require a rifle receiver extension and rifle buffer spring.
🔵 Buffer Weight
Everything up to this point has been simple. Everything has been “if this, then that”. It gets muddy from here.
The most debated and misunderstood variable in the buffering system is buffer mass, or weight.
Buffer weight contributes to the inertia of the reciprocating mass. The higher the inertia:
- The harder it is to move it from rest
- The slower it accelerates
- The more force required to slow it down
A heavier buffer delays the movement of the BCG out of battery and is able to absorb more energy from the gas system.
The appropriate buffer mass for a particular build depends on several factors, including:
- Gas system length
- Barrel length
- Gas port diameter
- BCG mass
- Gas system efficiency
- Buffer spring type
- Buffer spring strength
- Buffer spring length
- Buffer spring pre-load (influenced by strength and length)
- Buffer spring compression curve
- Stroke length (based on buffer tube length)
- Suppression
There is no exact formula for determining the best buffer. While most inputs into the system are fixed (albeit, drift-prone), the gas efficiency is something specific to the weapon.
The following table provides a baseline guidance for buffer selection. Call it a “guideline” or a “rule-of-thumb”. The best buffer for your gun will depend on the variables listed above, some of which cannot be spelled out in a table. Note that, unless otherwise indicated, the use case provided is based on the frame-standard cartridge (e.g., small frame → 5.56 NATO).
| Standard AR Buffer Weights | |||||
|---|---|---|---|---|---|
| Frame | Tube | Buffer Type | Approx. Weight (oz) | Weight Configuration | Use Case |
| FrameSmall | TubeCarbine | Buffer TypeUltralight | Approx. Weight (oz)1.7-2.6 | Configuration1A+2S 2A+1S 3A |
Use CaseHighly tuned competition builds Sub-sonic / underpowered loads Extremely inefficient builds |
| Small | Carbine | Carbine / H0 | 3.0 | Configuration3S | Rifle gas with a carbine tube Inefficient builds |
| Small | Carbine | H1 | 3.8-3.9 | Configuration2S + 1T | Commercial efficiency mid-length builds |
| Small | Carbine | H2 | 4.6-4.7 | Configuration1S + 2T | Standard efficiency mid-length builds Carbine-length builds Flow through suppressors |
| Small | Carbine | H3 | 5.5-5.6 | Configuration3T | Very efficient mid-length builds Carbine-length builds Suppressed builds Full-auto builds |
| Small | Carbine | HSS / H4 | 6.5-6.9 | Configuration3T + Steel Body | Extremely efficient mid-length builds High efficiency carbine-length builds Pistol-length builds High back-pressure suppression Full-auto builds |
| Small | Rifle | Rifle | 5.0-5.4 | Configuration5S | Most rifles |
| Small | A5 | Carbine / A5H0 | 3.8 | Configuration4S | Standard efficiency mid-length builds |
| Small | A5 | A5H1 | 4.5-4.7 | Configuration3S + 1T | Improved efficiency mid-length builds Carbine-length builds |
| Small | A5 | A5H2 | 5.3-5.5 | Configuration2S + 2T | Very efficient mid-length builds Carbine-length builds Suppressed builds |
| Small | A5 | A5H3 | 6.0-6.4 | Configuration1S + 3T | Extremely efficient mid-length builds High efficiency carbine-length gas builds Full-auto builds High back-pressure suppression |
| Small | A5 | A5H4 | 6.8-7.2 | Configuration4T | Ultra efficient mid-length builds Extreme efficiency carbine-length builds Suppressed carbine-length builds Suppressed full-auto builds |
| Large | Carbine | Carbine | 3.5-3.8 | Configuration2S + Steel Body | Standard builds |
| Large | Carbine | Heavy | 5.0-5.6 | Configuration2T + Steel Body | Overgassed builds Suppressed builds |
| Large | Rifle | Rifle | 5.0-5.6 | Configuration5S | Standard rifle builds |
| Large | Rifle | Heavy | 9.3-10 | Configuration5T | Suppressed rifle builds Non-standard cartridges |
|
|
|||||
A PBA Perspective
We keep mentioning that the right “thing” depends on your rifle. Elsewhere, you’ll read about “tuning”, and about “lightweight this” and “heavyweight that” in the quest for a gun that works right.
For perspective, our 16″ mid-length carbine will run a 7.2oz buffer like its nothing. This is not normal.
Many big name, mass production carbines with the same specs struggle to push half that.
How is this possible?
We are gonna go out on a limb and suggest that 90% of the problems with the guns that don’t want to cycle are related to the gas system. That is why we are constantly talking about gas efficiency in our articles.
For most commercial rifles, dimensional control is abhorrent. Many critical assemblies aren’t put together properly. Their makers get away with these practices because most consumers don’t know any better. Between the gas block journal and bolt tail, most rifles you can buy will leak like a sieve, to varying degrees. This has significant impact on the reliability of the rifle and the sanity of its owner.
Many of these mass production manufacturers know they have a problem with gas efficiency. Often, their answer is to bore out the gas port to compensate for significant tolerance-induced inefficiencies at every junction. The rifle runs and they get your money.
But gargantuan gas ports cause new issues down the road — in the opposite direction — when you replace components with something half decent. Suddenly you go from a barely-cycling a 3.0oz buffer to magazine overrun malfunctions and a mushroomed buffer bumper.
It doesn’t have to be this way. Learn what to look for and call the maker out. Learn how to gauge. Read our articles. Take Chad Albrecht’s SOTAR course. Share your findings with the world. Hold these lazy manufacturers accountable. Force them to do better.
We prefer our engineered for reliability approach. It makes everyone’s lives easier.
The Power of Efficiency
The first trip we made to the range after building our prototype “engineered for reliability” duty carbine build, we were disappointed and perplexed. Built upon our obsessively-crafted operating system, it didn’t look all that special. But we knew it was. We just didn’t anticipate how special the lump of metal in our hands was.
The goal of this trip seemed simple: find the heaviest buffer that would cycle in a standard build. We would start with the heaviest combo of buffer and spring and work back until we found the buffer weight that would run reliably with various buffer springs. Looking back now, it was over on the first trigger pull. But we kept going for a while…
We jotted down each shot fired in our data collection sheet. As the time marched on, we realized this trip was pointless. The build ran perfectly with every buffer and spring we had with us. 5.56 NATO. .223 Remington. Slow fire. Rapid fire. Solid shoulder weld. Limp wristed. It just worked.
We couldn’t figure out what we were doing wrong.
- Carbine buffer with Mil-Spec round wire spring: 15′ @ 3:30.
- H4 buffer with Tubb flat wire spring: 15′ @ 3:30.
Every shot. Every cartridge. Perfect throw.
None of it made sense. We couldn’t help but fixate on the fact that it ran perfectly with the heaviest buffer…
Defeated and impressed (and little bit pissed off that we had just blown 200 rounds of M193 when we could have stopped at 1), we went home and stuck another 200 round case of M193 in the freezer. Surely this would help us find the limit of efficiency.
We still haven’t found the reasonable limits of an truly efficient system.
The lesson? An efficient gas system is at the heart of reliability. Tight junctions from the gas block journal to the bolt tail make the most efficient use of the gas harnessed at the gas port.
This was a huge “ah-ha” moment for us — and enormous vindication. Not only did it gave credence to the TDP. But it was proof positive that those who obsess over dimensional conformity and efficiency are right in doing so. It was demonstration that the detractors — who claim that experts like Chad Albrect are wrong — are, themselves, dead wrong. Dimensions matter. Logic matters. Science is the rock to stupidity’s scissors.
🔵 Configurable and Adjustable Buffers
Some buffer systems allow you to customize internal mass using interchangeable weights. Products like the KAK Configurable Buffer let you fine-tune total buffer weight without changing buffer length or body. This is especially useful for dialing in suppressed rifles, SBRs, precision rifles, or multi-caliber setups.
While not as common as fixed-weight buffers, configurable systems give you the flexibility to test and refine your setup without purchasing multiple complete buffers. They are particularly useful when tuning around variable gas pressures, ammunition types, or recoil preferences.
The table below illustrates the diversity of possible configurations in a carbine length buffer body:
| Buffer Weight Configuration Chart | |||
|---|---|---|---|
| A = Aluminum S = Steel T = Tungsten | |||
| 1 | 2 | 3 | Total Weight |
| A | A | A | 1.7 oz |
| S | A | A | 2.2 oz |
| A | S | S | 2.6 oz |
| S | S | S | 3.0 oz |
| T | A | A | 3.0 oz |
| T | S | S | 3.8 oz |
| A | T | T | 4.3 oz |
| S | T | T | 4.7 oz |
| T | T | T | 5.6 oz |
🔵 Advanced Buffers: Hydraulic & Dual-Spring Systems
While most AR buffers rely on static internal weights, advanced designs use dynamic internal mechanisms to improve performance. These include hydraulic buffers and spring-dampened buffers that help control overtravel, reduce bolt bounce, and smooth out cyclic timing — especially on suppressed or overgassed systems.
Dual-Spring Buffers (KAK K-SPEC)
- Feature an internal damping spring inside the buffer body in addition to the main recoil spring.
- Helps absorb energy during rearward travel and reduce bolt bounce.
- Options for standard carbine and A5 receiver extensions.
- Offered in small frame, large frame, and pistol caliber variants.
Hydraulic Buffers (KynSHOT)
- Use a sealed hydraulic piston to absorb recoil energy and dampen BCG movement.
- Reduces felt recoil, slows bolt speed, and protects the lower receiver from excessive impact.
- Available in models for small frame, large frame, and pistol caliber platforms.
🔵 Buffer Spring Selection
Springs are not universal. They vary by:
- Length (carbine vs rifle)
- Spring rate (standard, extra power, or reduced power)
- Material (music wire vs flat wire vs chrome silicon)
Buffer weight offers a mechanism to manage variable force delivered by the gas system. Likewise, spring strength can be used to further refine recoil management.
We will discuss buffer springs in our next article.
| AR Buffer Spring Comparison | ||
|---|---|---|
| Spring Type | Characteristics | Use Case |
| Spring TypeStandard Carbine | Characteristics~10–11.5 lb | Use CaseTypical Mil-Spec builds with carbine buffers |
| Spring TypeExtra Power | Characteristics~12–13.5 lb, stiffer return force, resists overcycling | Use CaseSuppressed or overgassed setups |
| Spring TypeFlat Wire | CharacteristicsHigher preload, smoother compression, extended life | Use CaseHigh round count rifles or tuned match builds |
|
|
||
🔵 Captured Buffer Systems
While most AR platforms rely on traditional buffers and recoil springs as separate components, captured buffer systems integrate both into a single, self-contained assembly. This design eliminates the characteristic “sproing” sound of standard springs and offers a much smoother cycling impulse.
The most well-known example is the JP Silent Captured Spring (SCS), which combines a precision guide rod, spring, and buffer weights into one unit. These systems are highly tunable with interchangeable spring kits and mass inserts, making them ideal for competition, suppressed, or precision builds where smooth recoil and consistent timing are critical.
Captured systems are available for AR-15, AR-10, and PCC platforms, and are especially useful in applications where buffer weight and spring tension need to be tightly controlled.
For builders prioritizing quiet operation, smooth impulse, or reduced bolt bounce, a captured buffer system offers a premium upgrade path. We explore these systems further in the Buffer Springs article.
Choosing the Right Buffer
Selecting the correct buffer isn’t just about picking the heaviest one available — it’s about matching the buffer weight and spring to your gas system, barrel length, caliber, and intended use. A properly tuned buffer system enhances reliability, smooths recoil, and prevents malfunctions such as short-stroking or over-cycling.
Use the tables below as a starting point for selecting your buffer. Note that the right buffer will depend largely on gas system efficiency.
| Buffer Selection by Platform | ||||
|---|---|---|---|---|
| Platform | Buffer Length | Suppressed? | Recommended Buffer Type | Notes |
| Platform5.56 NATO / .223 Rem | Buffer LengthCarbine | Suppressed?No | Buffer TypeH1 or H2 | NotesStandard setup for mid/long barrels without excess gas |
| Yes | H2 or H3 | Heavier buffer mitigates gas blowback and bolt speed | ||
| A5 | No | A5H1 or A5H2 | Gentler compression curve improves impulse feel and reliability | |
| Yes | A5H2 or A5H3 | Smoother cycling, reduced wear with suppressor | ||
| Rifle | No | Rifle buffer (5.2 oz) | Classic fixed-stock configuration | |
| Yes | Rifle buffer (5.2 oz) | Still compatible; consider adjustable gas or swap out steel weights for tungsten for fine tuning | ||
| .300 Blackout | Carbine | No | H1 or H2 | Supersonic loads cycle reliably with standard tuning |
| Yes | H2 or H3 | Supersonic + suppressed = heavier buffer to reduce bolt speed; subsonic requires lighter buffer | ||
| A5 | No | A5H1 | Balanced for running supers | |
| Yes | A5H2 or A5H3 | Suppressor adds gas; A5H3 smooths out recoil; subsonic requires lighter buffer | ||
| Pistol Caliber (9mm, .45) | Carbine | No | Fixed-weight 5–7 oz | Direct blowback systems require heavy, solid buffers |
| Yes | Fixed-weight 6–10 oz | Helps slow down violent action with suppressor pressure | ||
| .308 Win / 6.5 Creedmoor | Carbine | No | .308 Carbine Buffer (~3.8 oz) | Use with .308 carbine spring in carbine extension |
| Yes | .308 Heavy Carbine Buffer (5.0-5.3 oz) | Slows bolt velocity, improves control with suppressor | ||
| Rifle | No | .308 Rifle Buffer (5.0–5.6 oz) | Requires rifle-length spring and extension | |
| Yes | .308 Heavy Rifle Buffer (9.3 oz) | Recommended to reduce overcycling with cans | ||
|
|
||||
| Buffer Selection by Platform | ||||
|---|---|---|---|---|
| Platform | Buffer Length | Suppressed? | Recommended Buffer Type | Notes |
| Platform5.56 NATO / .223 Rem | Buffer LengthCarbine | Suppressed?No | Recommended Buffer TypeH1 or H2 | NotesStandard setup for mid/long barrels without excess gas |
| Platform5.56 NATO / .223 Rem | Buffer LengthCarbine | Suppressed?Yes | Recommended Buffer TypeH2 or H3 | NotesHeavier buffer mitigates gas blowback and bolt speed |
| Platform5.56 NATO / .223 Rem | Buffer LengthA5 | Suppressed?No | Recommended Buffer TypeA5H1 or A5H2 | NotesGentler compression curve improves impulse feel and reliability |
| Platform5.56 NATO / .223 Rem | Buffer LengthA5 | Suppressed?Yes | Recommended Buffer TypeA5H2 or A5H3 | NotesSmoother cycling, reduced wear with suppressor |
| Platform5.56 NATO / .223 Rem | Buffer LengthRifle | Suppressed?No | Recommended Buffer TypeRifle buffer (5.2 oz) | NotesClassic fixed-stock configuration |
| Platform5.56 NATO / .223 Rem | Buffer LengthRifle | Suppressed?Yes | Recommended Buffer TypeRifle buffer (5.2 oz) | NotesStill compatible; consider adjustable gas or swap out steel weights for tungsten for fine tuning |
| Platform.300 Blackout | Buffer LengthCarbine | Suppressed?No | Recommended Buffer TypeH1 or H2 | NotesSupersonic loads cycle reliably with standard tuning |
| Platform.300 Blackout | Buffer LengthCarbine | Suppressed?Yes | Recommended Buffer TypeH2 or H3 | NotesSupersonic + suppressed = heavier buffer to reduce bolt speed; subsonic requires lighter buffer |
| Platform.300 Blackout | Buffer LengthA5 | Suppressed?No | Recommended Buffer TypeA5H1 | NotesBalanced for running supers |
| Platform.300 Blackout | Buffer LengthA5 | Suppressed?Yes | Recommended Buffer TypeA5H2 or A5H3 | NotesSuppressor adds gas; A5H3 smooths out recoil; subsonic requires lighter buffer |
| PlatformPistol Caliber (9mm, .45) | Buffer LengthCarbine | Suppressed?No | Recommended Buffer TypeFixed-weight 5–7 oz | NotesDirect blowback systems require heavy, solid buffers |
| PlatformPistol Caliber (9mm, .45) | Buffer LengthCarbine | Suppressed?Yes | Recommended Buffer TypeFixed-weight 6–10 oz | NotesHelps slow down violent action with suppressor pressure |
| Platform.308 Win / 6.5 Creedmoor | Buffer LengthCarbine | Suppressed?No | Recommended Buffer Type.308 Carbine Buffer (~3.8 oz) | NotesUse with .308 carbine spring in carbine extension |
| Platform.308 Win / 6.5 Creedmoor | Buffer LengthCarbine | Suppressed?Yes | Recommended Buffer Type.308 Heavy Carbine Buffer (5.0-5.3 oz) | NotesSlows bolt velocity, improves control with suppressor |
| Platform.308 Win / 6.5 Creedmoor | Buffer LengthRifle | Suppressed?No | Recommended Buffer Type.308 Rifle Buffer (5.0–5.6 oz) | NotesRequires rifle-length spring and extension |
| Platform.308 Win / 6.5 Creedmoor | Buffer LengthRifle | Suppressed?Yes | Recommended Buffer Type.308 Heavy Rifle Buffer (9.3 oz) | NotesRecommended to reduce overcycling with cans |
|
|
||||
| Buffer Selection by Use Case | ||
|---|---|---|
| Use Case | Recommended Setup | Notes |
| Use CaseSuppressed Builds | Recommended SetupMedium to heavy buffer (H2–H3+), extra power or flat wire spring | NotesMitigates overgassing and bolt speed; consider adjustable gas |
| Use CaseShort Barrel or Pistol-Length Gas | Recommended SetupMedium to heavy buffer (H2–H3+) and extra-power spring | NotesShort dwell time and high port pressure benefit from heavier mass and tuning |
| Use CasePrecision or DMR Use | Recommended SetupA5 or rifle system, midweight buffer, flat wire spring | NotesReduces recoil impulse for better sight recovery and accuracy; consider adjustable gas for fine-tuning |
| Use CaseCompetition / Speed Shooting | Recommended SetupLightweight buffer (e.g. aluminum), reduced power spring; consider hydraulic or captured systems for smoother recoil and reduced mechanical noise | NotesOptimized for rapid cycling with minimal muzzle movement; may need adjustable gas; lower reliability margin |
| Use CaseHigh-Rate Fire (Full-Auto / Binary) | Recommended SetupHeavy buffer (H3 or hydraulic), extra power spring | NotesControls bolt velocity, protects BCG and receiver under high cyclic stress, reduces cycle rate |
| Use CaseSubsonic Ammunition | Recommended SetupLighter buffer (Carbine or H1), standard spring | NotesEnsures reliable cycling with lower port pressure; may still need tuning |
| Use CaseOvergassed or Overbuilt Systems | Recommended SetupHeavy buffer (H3+), enhanced spring | NotesSlows cycle rate and prevents wear from excessive bolt velocity |
|
|
||
PB Picks: Buffers
🤏 Small Frame Buffers
KAK K-SPEC Enhanced Buffers
Contains an internal, captured spring mechanism. Provides smoother impulse and reduced bolt bounce. Available in multiple weights for AR-15 and PCC platforms, for both carbine- and A5-length buffer tubes.
KAK Industry AR-15 Buffers
Buffer bodies are 6061 with a hardcoat anodized finish. Available in mini/CQC, carbine, A5, and rifle lengths. Available in every possible weight configuration.
KAK Industry Configurable Carbine Buffer
Kit with one buffer body, multiple bumpers and spacers, and three of each weight type — aluminum, steel, tungsten — to allow the ultimate in configuration flexibility without having to buy several individual buffers.
Carbine Buffer Tube
A5 Buffer Tube
💪 Large Frame Buffers
Available in carbine and rifle lengths in multiple weights. Buffer bodies available in aluminum with a hardcoat anodized finish (rifle) or 304 stainless steel (carbine).
🔫 Pistol Caliber Buffers
KAK K-SPEC Enhanced PCC Buffers
Captured dual-spring system designed specifically for blowback pistol caliber carbines. Reduces bolt bounce and softens the recoil impulse. Compatible with most 9mm AR platforms using carbine-length receiver extensions.
KAK Industry Pistol Caliber Buffers
Available in standard AR-15 carbine, CQC, and extended buffer body lengths. Offered in a wide variety of weights — 3.7oz (CQC), 4.6oz (CQC), 5.5oz (AR-15 and CQC), 5.7oz, 6.9oz, 7.8oz, 8oz, 8.4oz, 8.6oz, 9.5oz, and 10oz — for a tremendous amount of tuning for hard hitting blowback systems.
KAK Industry Configurable Carbine Buffer
Kit with one heavy PCC buffer body, multiple bumpers and spacers, and four of each weight type — aluminum, steel, tungsten — to allow the ultimate in configuration flexibility without having to buy several individual buffers.
What's Wrong with My Buffer?
If you already have a buffer in your build, but the system isn’t performing the way you expect it to, consider this table of tuning/remediation actions:
| Gas System Behavior and Buffer Tuning Remediation | |||
|---|---|---|---|
| Observed Behavior | Likely Cause | Recommended Action | Notes |
| Observed BehaviorViolent ejection, forward/right ejection angle | Likely CauseOvergassed / under-buffered | Recommended ActionUse H2 or H3 buffer, extra power spring, or add adjustable gas block | NotesReduces bolt speed, wear, and gas-to-face (especially suppressed) |
| Observed BehaviorShort-stroking, failure to lock back | Likely CauseUndergassed / over-buffered | Recommended ActionUse standard buffer/spring, open gas port | NotesEnsure gas port size and barrel length match system design and ensure efficient gas system and BCG |
| Observed BehaviorExcessive recoil impulse | Likely CauseLow mass buffer or no gas tuning | Recommended ActionUse heavier buffer (H2+), A5 system, or flat wire spring | NotesSmoother recoil improves split times and control |
| Observed BehaviorUnreliable feeding or double feeds | Likely CauseBolt cycling too fast | Recommended ActionAdd buffer mass and/or increase spring rate | NotesOverruning magazine timing |
| Observed BehaviorExcessive gas-to-face with suppressor | Likely CauseOvergassed with increased backpressure | Recommended ActionInstall adjustable gas block, heavier buffer, or gas-busting charging handle | NotesAGB is the most effective solution for suppressor setups |
| Observed BehaviorCycle rate too slow or bolt bounce on closing | Likely CauseToo heavy a buffer or weak spring | Recommended ActionReduce buffer weight or upgrade to proper spring tension | NotesEnsure buffer + spring match intended use case, ensure efficient gas system and BCG |
|
|
|||
Frequently Asked Questions
What buffer weight should I use for a suppressed AR-15?
For suppressed AR-15s, an H2 or H3 buffer is typically ideal. These heavier buffers delay bolt unlocking, slow BCG velocity, reduce gas blowback, and prevent over-cycling. If you’re using an adjustable gas block, you can fine-tune performance even further.
What’s the best buffer spring for an AR-15 with a mid-length gas system?
A standard carbine spring is usually sufficient, but many shooters benefit from a flat wire or extra power spring for smoother cycling. These options work especially well with H1/H2 buffers and mild over-gassing.
How do I tune my AR-15 buffer system for reduced recoil?
To reduce recoil, we like to start with an adjustable gas block. Second to that, increase buffer mass (e.g., H2 or H3), and consider a flat wire or extra power recoil spring. This combo slows the bolt and softens the impulse.
What’s the difference between H2 and H3 buffers in AR-15 builds?
An H2 buffer contains 2 tungsten and 1 steel weight (~4.6 oz), while an H3 has 3 tungsten weights (~5.4 oz). H3 buffers are better for suppressed or overgassed rifles.
What are the advantages of using an A5 buffer system in an AR-15?
The A5 system offers a gentler spring compression curve, smoother recoil impulse, and improved reliability — especially in suppressed or precision setups. It requires a specific A5 buffer tube, longer rifle spring, and A5-length buffer.
What buffer tube should I use for my AR-15?
Carbine buffer tubes are used with collapsible stocks and carbine buffers. Rifle tubes are longer and require rifle-length buffers and springs. The A5 system uses a unique 7.75″ tube and A5-length buffers. Always match buffer and tube length correctly.
What’s the best buffer for 300 Blackout AR-15 builds?
Buffer selection for .300 Blackout depends heavily on bullet weight, velocity (subsonic vs. supersonic), gas system length, and whether the rifle is suppressed:
- Supersonic (110–125gr), unsuppressed, with carbine gas:
A standard carbine buffer or H1 typically provides reliable cycling with moderate recoil. - Supersonic, suppressed, with carbine or pistol gas:
Use an H2 buffer to slow the bolt and reduce gas blowback. Suppressors add backpressure, which can otherwise cause over-cycling. - Subsonic (190–220gr), suppressed, with pistol gas: A carbine buffer is usually ideal. Cycling is often marginal, so avoid heavy buffers (H2/H3) unless the gas port is oversized or an adjustable gas block is used.
- Subsonic, unsuppressed, with pistol gas: Reliability is difficult. A lightweight buffer and standard or reduced power spring may be required, and even then, function isn’t guaranteed without tuning.
- Subsonic, carbine gas: Not recommended. Subsonic loads generally won’t cycle carbine gas systems reliably unless the gas port is very large.
Summary Recommendation:
- Supersonic? H1 or H2
- Subsonic suppressed? Carbine buffer or H1
- Subsonic unsuppressed? May require tuning, lightweight buffer, or manual cycling
How does buffer weight affect AR-15 cycling reliability?
Heavier buffers slow down the bolt carrier group, which can improve reliability in overgassed or suppressed systems. Too heavy a buffer in an undergassed rifle can cause short-stroking or failure to lock back.
Can I use a rifle buffer in a carbine buffer tube?
No. Rifle buffers are longer and will bottom out prematurely in a carbine tube, potentially causing damage. Always match your buffer length to the correct tube type: carbine, rifle, or A5.
What’s the best buffer and spring setup for SBRs or AR pistols?
Most AR pistols and short-barreled rifles (SBRs) run hot gas systems due to shorter gas length. An H2 or H3 buffer paired with an extra power or flat wire spring helps tame the violent impulse. Adjustable gas is recommended to tune the system precisely.
What’s the benefit of a hydraulic or captured buffer?
They reduce bolt velocity and recoil impulse through fluid or mechanical damping, offering smoother cycling and less noise — especially useful in tuned or suppressed builds.
Is the A5 buffer system compatible with the AR-10/LR-308?
- A5 receiver extension
- AR-15 carbine buffer (H2 and H3 approximate the weight range of an AR-10 carbine buffer)
- Sprinco Red carbine spring (recommended by VLTOR) or AR-10 rifle spring (reported by users)
Additional Resources
To better understand AR buffer system selection and how it interacts with other components, explore the following resources and product options.
-
Gas Block Design and Selection Guide
Understand how gas system length and tuning interact with buffer mass. -
Bolt Carrier Group Design Article
Dive into carrier weight, mass, and how it complements your buffer choice. -
AR Platform Compatibility Guide
Ensure your buffer tube, stock, and buffer match across small frame, PCC, and large frame platforms.
Final Thoughts: Mass Matters
The AR buffer system may be hidden inside the receiver extension, but its role in your rifle’s performance couldn’t be more visible. From bolt velocity and recoil impulse to reliability and parts longevity, the buffer, spring, and tube work as a unified system that must be matched to your platform, gas system, and intended use.
Whether you’re running a suppressed SBR, building a precision DMR, or tuning a .300 Blackout pistol, the ideal buffer setup balances energy absorption, spring return, and bolt control. There’s no one-size-fits-all solution — but there is a best fit for your build.
Start with your barrel length and gas system, then select a buffer weight and spring strength that tames the cycle without compromising reliability. If you’re unsure, follow known working configurations, experiment with a configurable buffer, or use an adjustable gas block to give yourself a wider tuning window.
A properly tuned buffer system isn’t just smoother — it’s smarter. And it’s one of the most effective, affordable upgrades you can make to transform your rifle’s performance.
Get Social - Share This Page!
Tell Us What You Think!
Your feedback is really important to us. Our goal is to provide the highest quality content possible to help you on your AR journey. If anything isn’t clear, is missing, is incorrect, or otherwise needs our attention, we greatly appreciate you letting us know. It will help us continuously improve our content for the firearms community.
